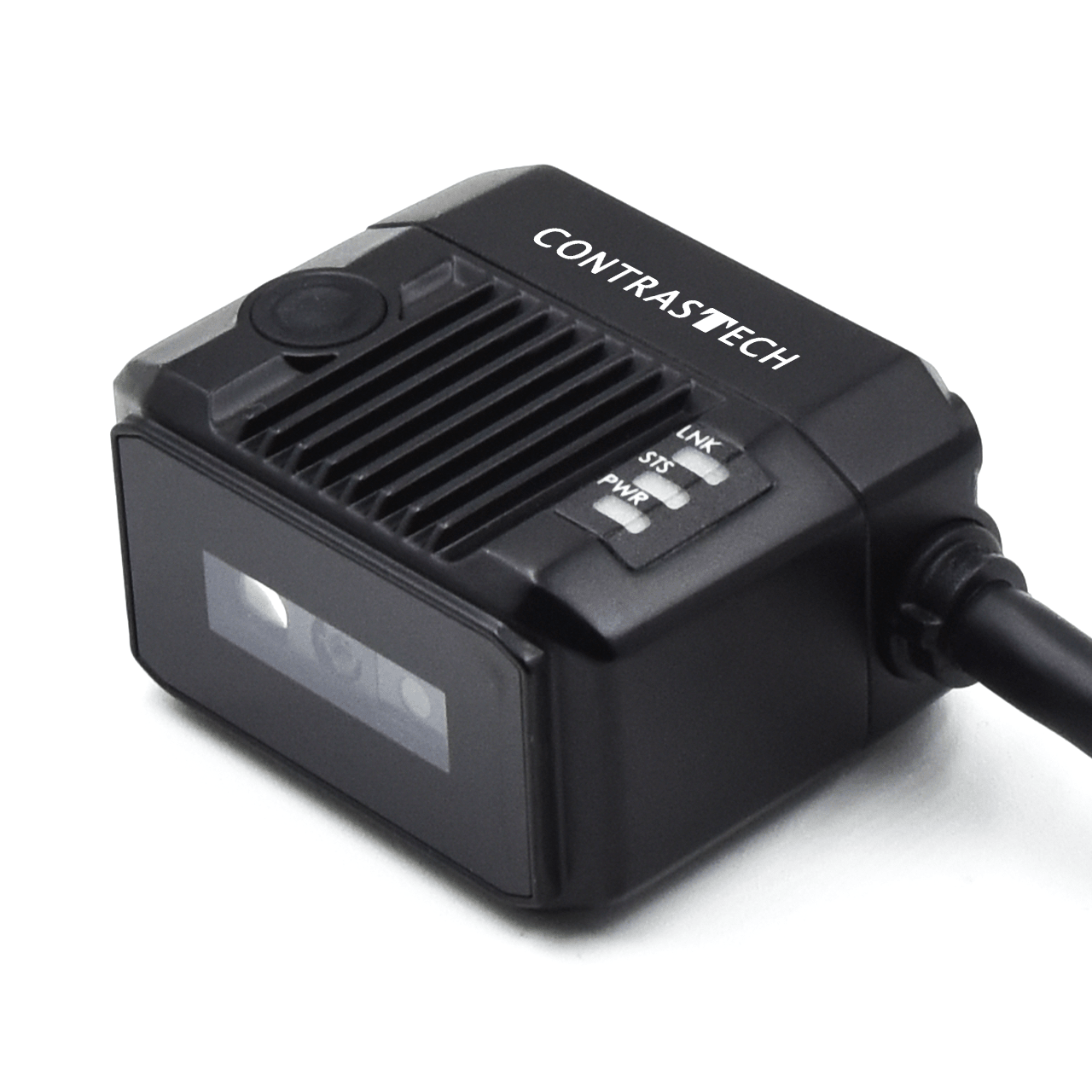

Ultra-compact 1408×1024 industrial code reader for fast, accurate 1D/2D barcode decoding. Ideal for tight spaces, it ensures high-speed scanning, reliable performance, and easy integration into automation systems. Perfect for logistics, packaging, and manufacturing applications.
Main Features
● Built-in laser aiming cross hairs can clearly indicate the target field of view.
● External focusing knob for visualization of the focusing plane.
● Various I/O interface and in-line power interface.
● Ultra-compact size, suitable for small space, perfect for miniaturized or existing automation equipment.
● With integrated light source, reading speed up to 45 yards/ second, stable and reliable reading performance.
● Single aviation plug design, simple connection.
● Side trigger button, flexible off-line debugging.
Main Specification
| Model |
DM-W160S-M06SM-SxST
|
|
Resolution
|
1408 × 1024
|
|
Frame Rate
|
60 fps
|
|
Reading Speed
|
45 yards/second
|
|
Data Output Interface
|
Fast Ethernet
|
|
Max Power Consumption
|
10.6 W@24 VDC
|
|
Focal Length
|
6.72mm
|
|
Working Distance
|
40~120mm
Manual Focusing
|
Dimensions
DM-W160S-M06SM-SxST Download
