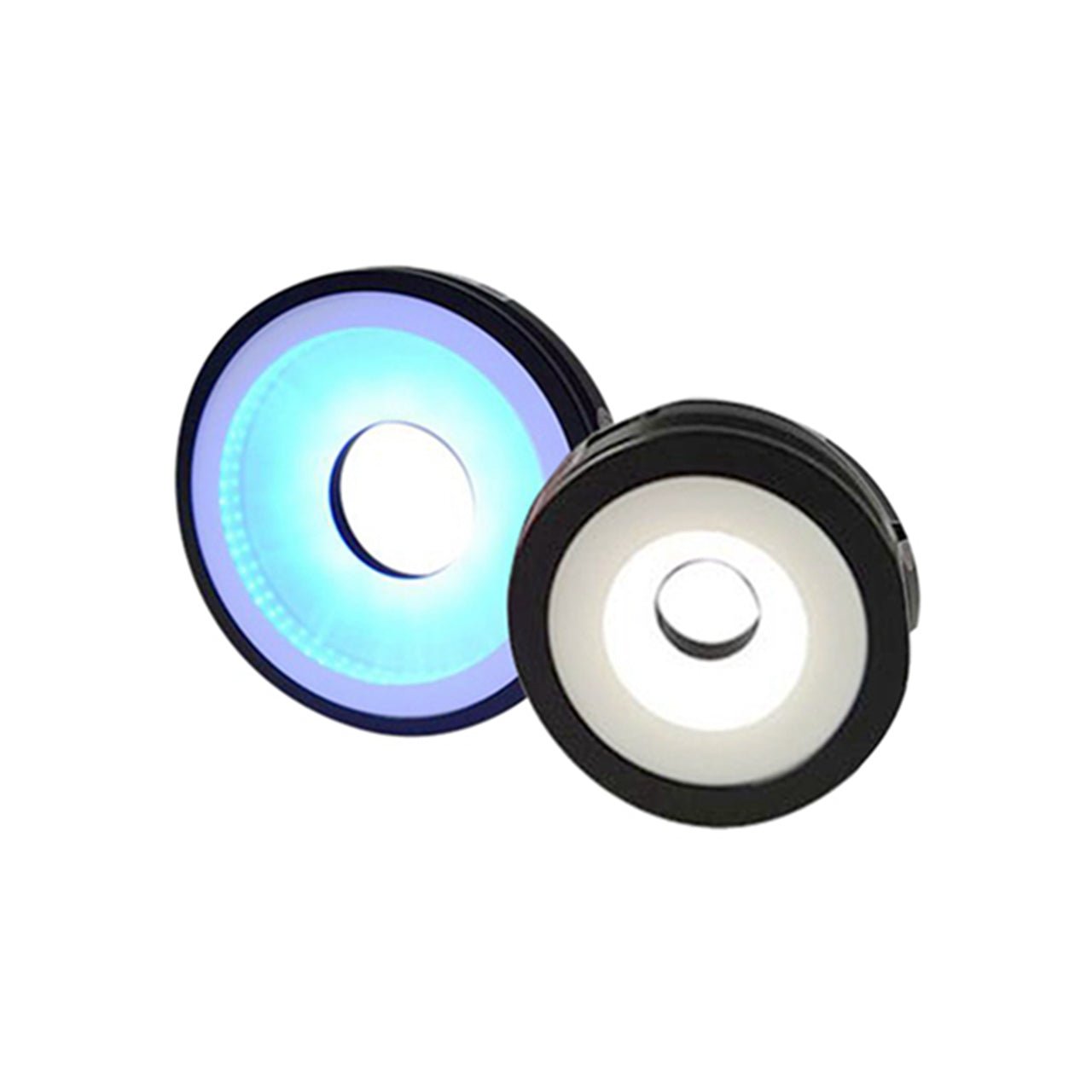

WR Series Shadowless Ring Lights with Diffuser Panel provide uniform, glare-free illumination for high-precision imaging. The shadowless design eliminates uneven lighting, while the diffuser panel ensures soft, even brightness. Perfect for inspecting reflective or uneven surfaces in electronics, precision manufacturing, and quality control applications.
Features
■ LED beads are evenly distributed around. The light penetrate the LGP and become uniform and diffusible.
■ This series are widely used in the occasion that reflective light or light spots are not welcome.
Applications
■ Check cigarette case printing
■ Latness of diode pins
■ Haracters on IC chips
Common Specifications
| Input voltage | 24 VDC |
|
Connector
|
SMR-03V-B
|
|
Wavelength range
|
Red: 620-630nm; Blue: 460-475nm; Green: 520-530nm; |
|
Color temperature (white)
|
6000-7500K
|
|
Operating environment(indoor)
|
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
Life time
|
White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
Case material
|
Aluminum alloy, Resin |
Emitting Color, IP Rating, cooling method, emitting surface length, etc customizable
