Описание

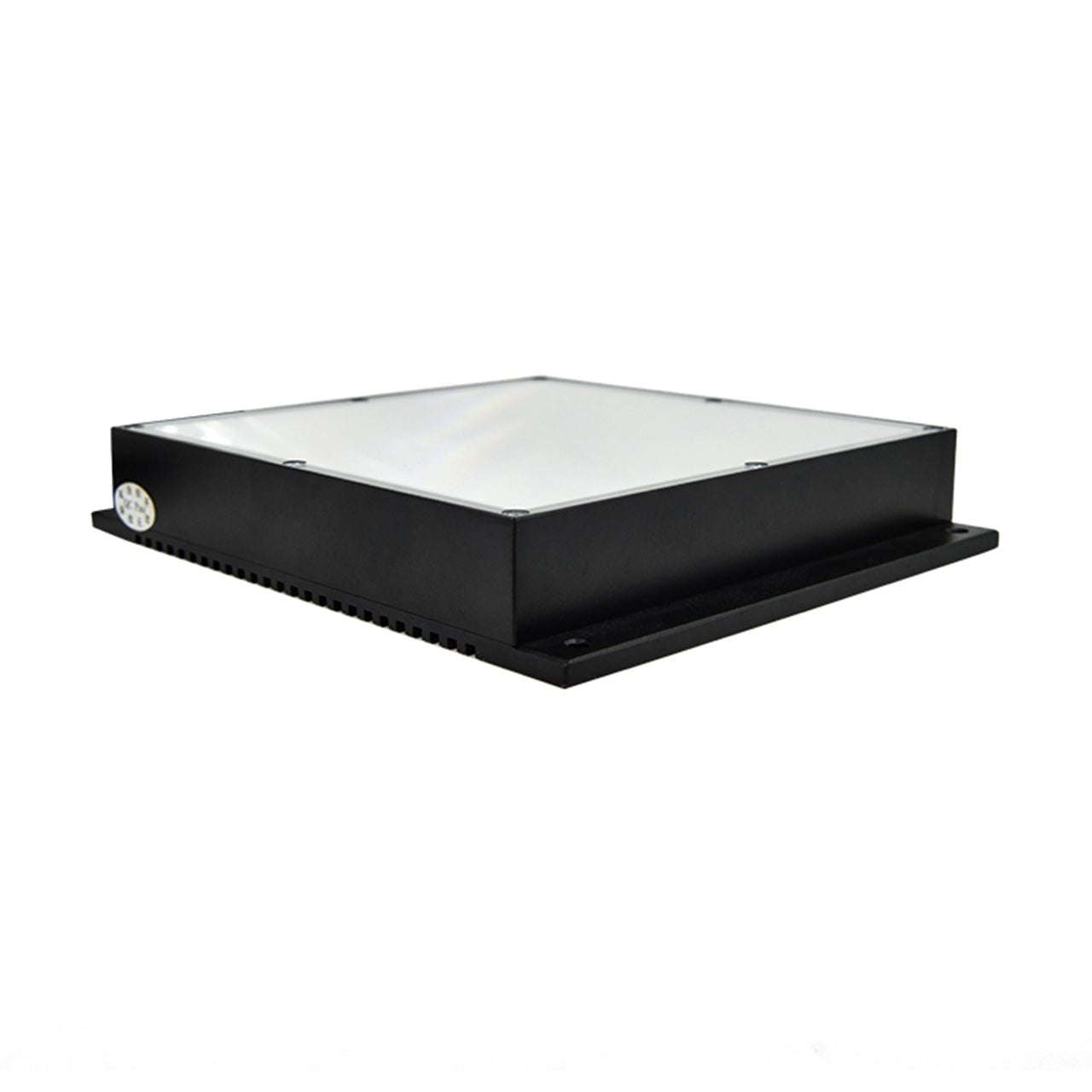

The BFP Series Bottom/Side Parallel Flat Backlight Illumination delivers exceptional uniformity and brightness, ideal for edge detection, dimensional measurement, and contour inspections. Its dual lighting modes (bottom and side) enhance flexibility for various applications, while the durable design ensures reliable performance in demanding industrial settings.
Features
■ Optimizing the lights with unique material, making the light radiate in parallel.
■ The light is with standard mold shell and compact structure,easy to install.
Applications
■ Dimension measuring, appearance inspection.
■ Identification and inspection of the large size mechanical parts.
Common Specifications
| Input voltage | 24 VDC |
|
Wavelength range
|
Red: 620-630nm; Blue: 460-475nm; Green: 520-530nm; |
|
Color temperature (white)
|
5800-7500K
|
|
Operating environment(indoor)
|
Temperature: 0~40℃ Humidity:20% to 85% RH (with no condensation) |
|
Life time
|
White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
|
Case material
|
Aluminum alloy, Resin |
Illumination Structure
Emitting Color, IP Rating, cooling method, emitting surface length, etc customizable
Характеристики
Бренд
Contrastech
