Description
Characteristics
Reviews
Description

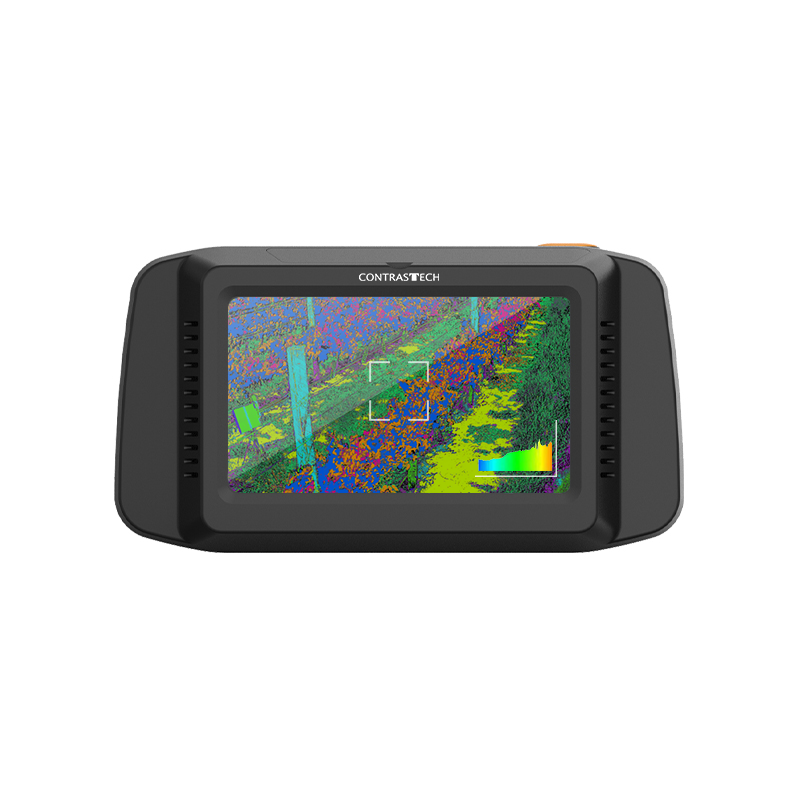

Portable Hyperspectral Camera with a built-in battery supporting up to 300 measurements per charge.
It enables flexible adjustment of exposure time, binning, and ROI, allowing
on-site acquisition and analysis of 400–1700 nm hyperspectral data.
A 5-inch touchscreen ensures intuitive display and operation.
Key Features
- Portable hyperspectral camera with built-in battery
- Covers 400–1700 nm spectral range (model dependent)
- Up to 1200 spectral channels
- High spectral resolution (down to 2.5 nm FWHM)
Typical Applition
- Non-destructive Inspection
- Material Identification
- Soil Monitoring
- Crop Growth Assessment
Main Specifications
|
Model
|
iRT7UVL36M/
iRT10UVN36M/
iRT17USW16M
|
|
Spectral Dispersion
|
Grating
|
|
Image Resolution
|
1920 x 1920/1920 x 1920/1280 x 1280
|
|
Dynamic Range
|
12 bit
|
|
Imaging Speed
|
5 s/5 s/10 s
|
|
Spectral Channel Number
|
500/1200/1024
|
|
Spectral Range
|
400-700 nm/400-1000 nm /900-1700 nm
|
|
FWHM
|
2.5 nm/2.5 nm/6 nm
|
|
Slit Width
|
25 um
|
|
Transmission Efficiency
|
≥ 60%
|
|
Stray Light
|
≤ 0.5%
|
|
Pixel Size
|
5.86* 5.86 um/5.86* 5.86 um/5* 5um
|
|
Detector
|
CMOS/CMOS/InGaAs
|
|
Minimum Exposure Time
|
21 us/21 us/1 us
|
|
Field Angle
|
25°/25°/17°
|
|
Lens Focal Length
|
25 mm
|
|
Minimum Working Distance
|
100 mm
|
|
Signal-to-noise ratio
|
600/1
|
|
Interface
|
USB 3.0 (Type-C)
|
|
Lens Mount
|
C-Mount
|
|
Auxiliary Imaging Function
|
The auxiliary view camera monitors the shooting area
|
Infrared Camera Download
Characteristics
Бренд
Contrastech
sensor
-
Pixel Size (μm)
0
Shutter Type
/
Spectral Range
-
Reviews
No one has left any reviews yet
